Fruit Processing Line

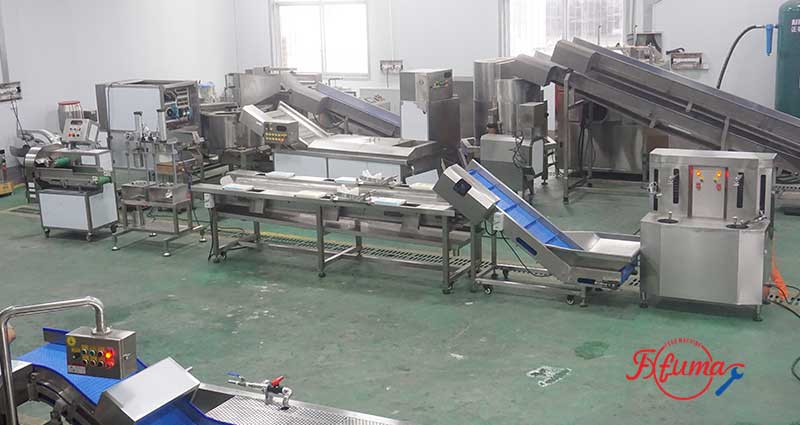

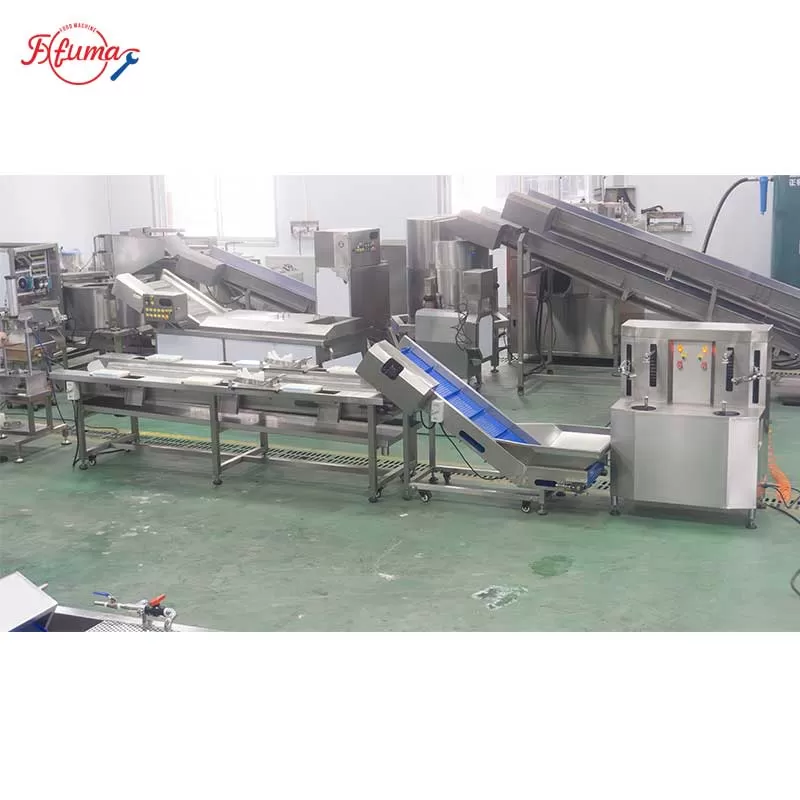

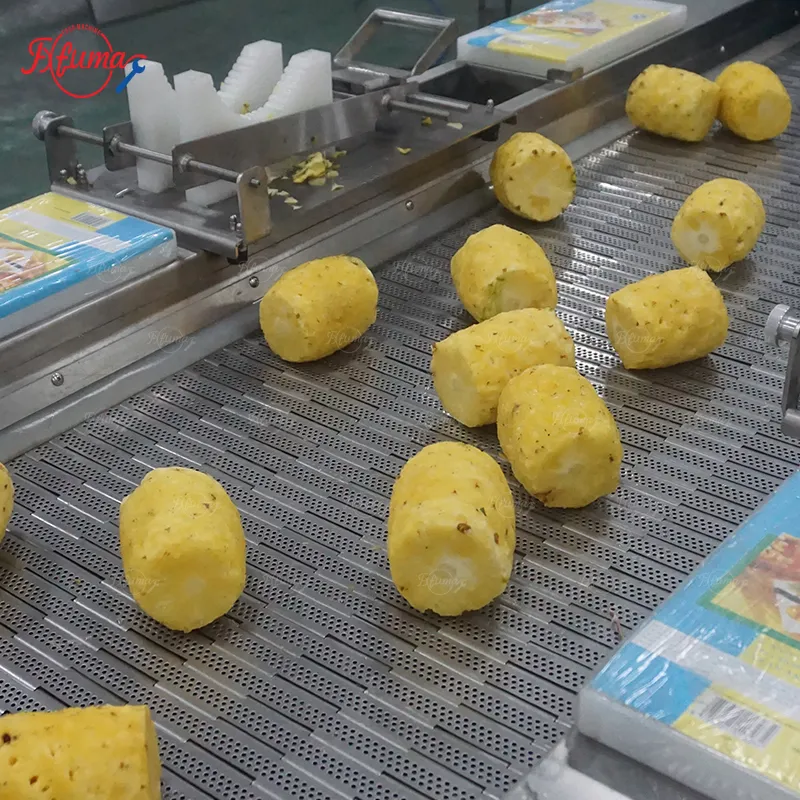

The pineapple drying line is a customized solution designed for deep processing of fresh pineapples. The line includes pineapple peeling, manual head and tail trimming, coring and segmenting, slicing, and drying processes. It is capable of producing high-quality dried pineapple fan-shaped slices as popular snack products. According to customer requirements, the line can also be customized to produce pineapple rings, dices, or other shapes.
Fan-Pineapple Drying Line
Features:
✅ Fully customized processing line tailored to different pineapple products
✅ Complete workflow from peeling, trimming, coring, slicing, to drying
✅ Multiple finished product options: fan slices, rings, dices, and more
✅ Stable and efficient drying process, ensuring color and taste quality
✅ Ideal for dried fruit and snack food manufacturers
Key Components of Pineapple Process Line:
 |  |

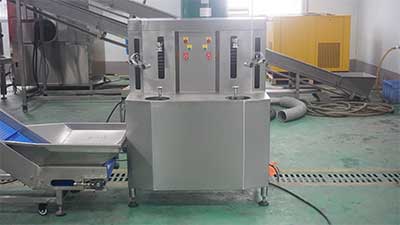

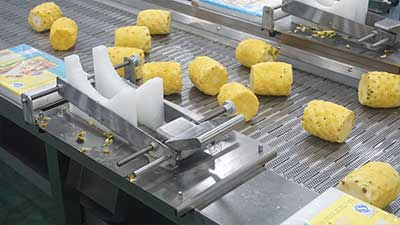

| 2 Heads Pineapple Peeler | Manual Head Tail Cutter |
 |  |

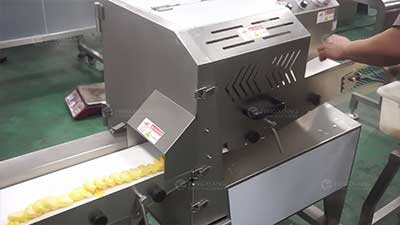

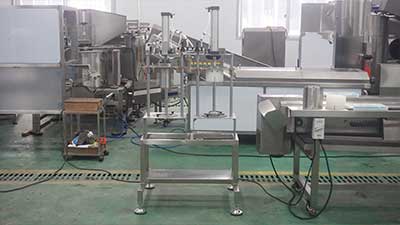

| Pineapple Coring and Wedging Machine | Pineapple Slicer |
 |  |
| Dehydrator Machine | Finish Dried Pineapples |

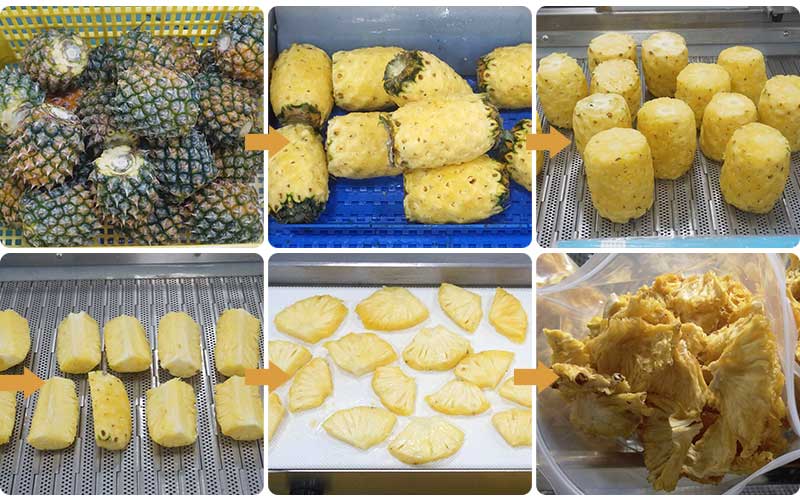

Processing Flow:
Specifications:
| Machine | Power | Voltage | Capacity | Size |
| Pineapple Peeler Machine | 1kw | 220V | 350-450pcs/h | 1080*600*1600mm |
| Pineapple Head Tail Cutter | _ | _ | _ | 335*215*150mm |
| Pineapple Corer and Wedger | _ | _ | 360-400pcs/h | 1325*650*1656mm |
| Pineapple Slicer | 1.3 kw | 220V | _ | 1980*710*1050mm |

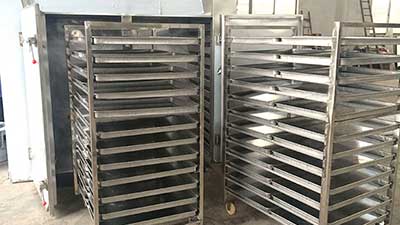

| Pineapple Dehydrator Machine | 1.1kw | 220V~50Hz/60Hz | 20~100kg/batch | 1280*700*1860mm |
