Portioning
The five-section bone saw is a piece of equipment designed for meat cutting. It can cut ribs, pork hocks, and similar products into up to 5 pieces in a single pass. Equipped with a multi-blade linkage system and a precision positioning mechanism, it enables one-step multi-section cutting. It is mainly suitable for slicing and dicing pork trotters, pork ribs, lamb ribs, and other materials.

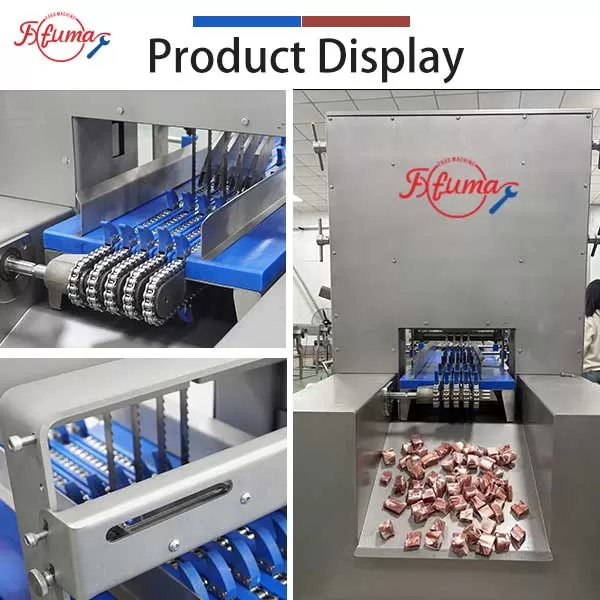

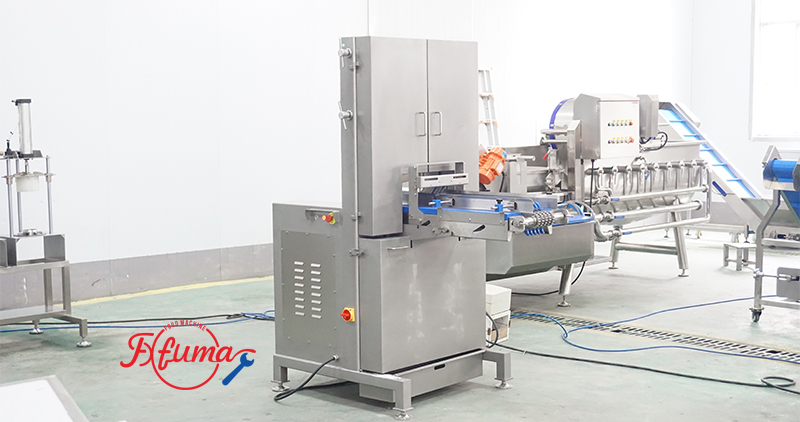

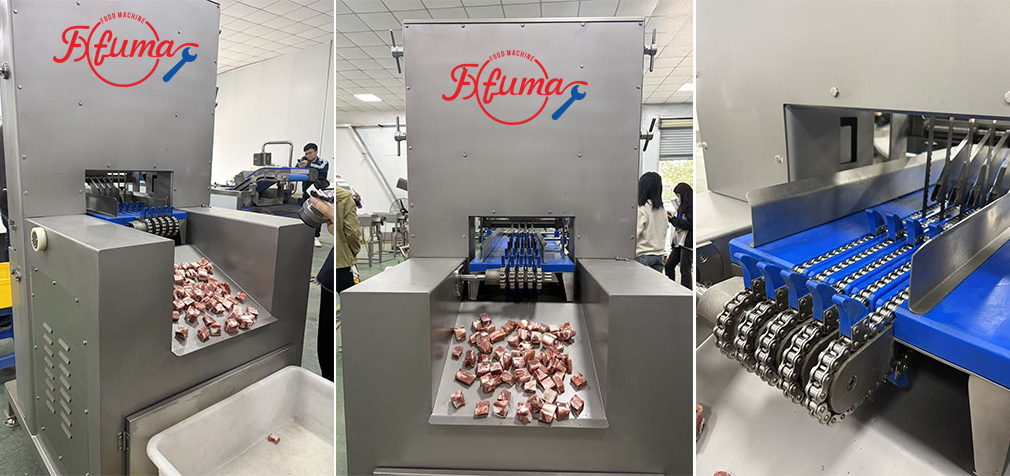

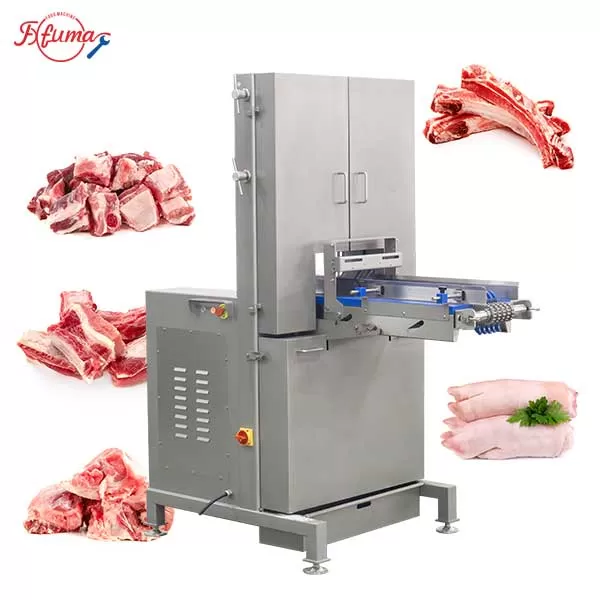

Automatic Meat with Bone Strip & Cube Saw Cutting Machine
Features:

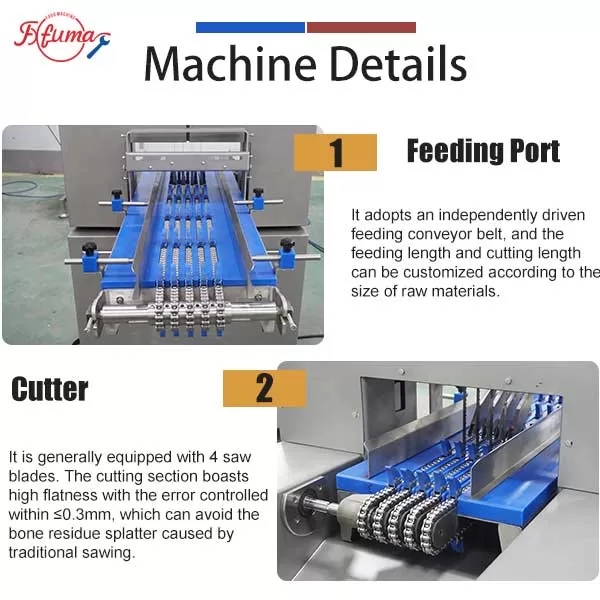

✅ Five-Stage Continuous Cutting Design: Ensures automated, stable, and high-efficiency bone cutting.
✅ Four Serrated Saw Blades: Multiple blades work simultaneously for higher output and consistency.
✅ Flexible Cutting Forms: Suitable for both strip and cube cutting of pork chops.
✅ Customizable Cutting Sizes: Meets various bone-in meat product specifications.
✅ Customised Line Integration: Easily integrated with conveying, sorting, and packaging systems.
Specifications:
| Model | 4 saw blades | 2 saw blades |
| Size | 1020×820×1800 mm | 1200×920×1600mm |
| Power | 3.5 kw | 3.3kw |
| Voltage | 380V | 380V |
| Section Width | 30–60 mm (Customizable) | 80mm×80mm×80mm (Customizable) |
| Workbench Size | 300 mm (Width) | 300mm |
| Maximum Cutting Height | 160 mm | 160mm |
| Dimensional Accuracy | 1.5 mm | 1.5mm |
| Saw Blade Linear Speed | 20 m/s | 22.6m/s |
| Saw Blade Length | 1985 mm×2; 3355 mm×2 | 2490mm×16mm×0.56×4T |
| Machine Weight | 370kg | 400kg |
Cutting Effect
Equipped with a multi-blade linkage system and a precision positioning mechanism, it enables one-step multi-section cutting. It is mainly suitable for slicing and dicing pork trotters, pork ribs, lamb ribs, and other materials.
Video
PRODUCT CLASSIFICATION
Contact Us
+86 400-188-3313
+86 199 2706 5265
+86 758 278 8707
RELATED PRODUCTS

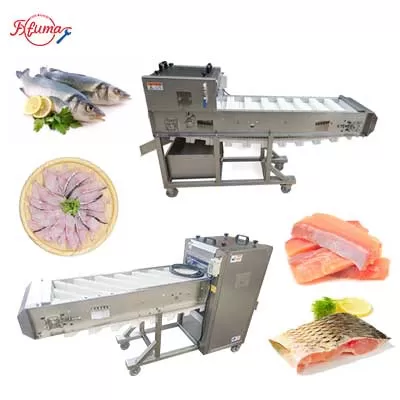

Horizontal Diagonal and Straight Cut Fresh Fish Slicer Machine
Our horizontal fish slicer with slat conveyor offers straight or inclined cutting. It automatically slices and discharges fillets without manual help, ideal for high-volume processing of various fish types.
XQPJ-160 Industrial Continuous Meat Slicer Machine
The continuous meat slicer is a kind of meat-cutting equipment that can continuously feed and cut meat materials. It can be used for cutting various meat raw materials such as snowflake fatty beef, cooked beef and mutton, chicken breast, sausages, cured meat, bacon, ham, streaky pork, pork, etc.

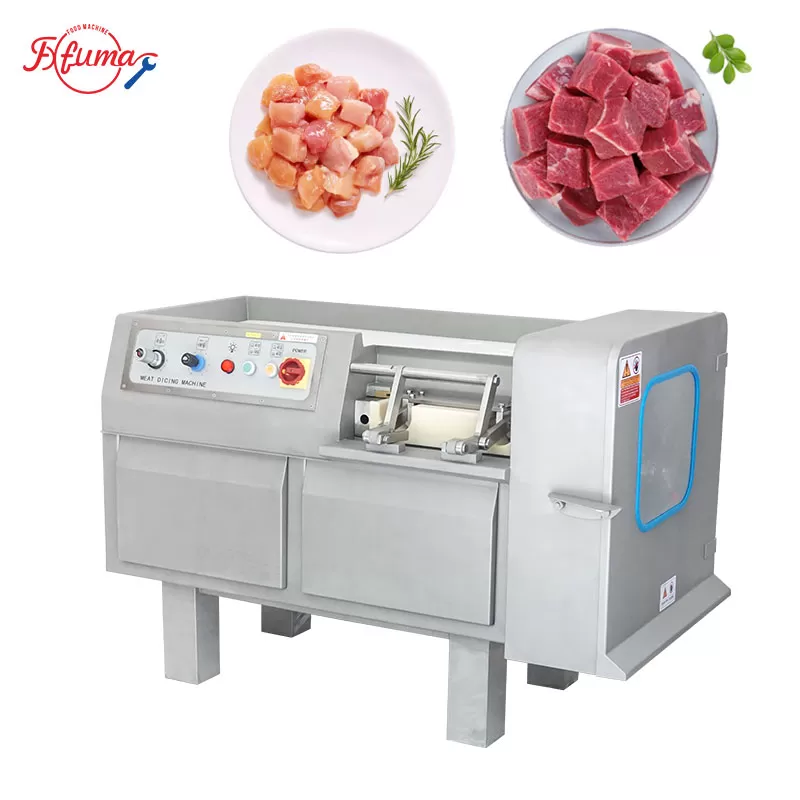

Commercial Meat Cubes Dicer Machine
This commercial meat dicer machine processes frozen meats (chicken/pork/beef/fish) and ham into uniform cubes with 84x84x350mm cutting chamber. Features 10 interchangeable grids (5/6/7/8/9/11/13/16/20/27mm) for size flexibility.
FC-304C Automatic cooked meat slicing machine Sausage slicer
Cooked meat slicer machine with SUS304 steel body & adjustable blade. Perfectly slices roast pork, beef, and sausages with 1-15mm thickness. ISO-certified.
Industrial double variable frequency meat slicer and portioner
This heavy-duty industrial meat slicer features triple blades, a dual-frequency motor, and blue conveyor belts for automated feeding/discharging. Designed for high-volume raw and cooked meat processing
Fish slicer machine Fish cutting machine
The oblique fish slicer machine imitates the principle of manual slicing. Through obligate cutting tools and transmission devices, it cuts the whole fish into fish slices of uniform thickness. Its slicing angle and thickness can usually be adjusted according to requirements, and it can automatically slice the fish obliquely.
QWS-1 Electric meat slicer and strips cutter
This desktop electric meat slicer is designed for high efficiency. With a compact body, it saves space and fits various kitchens. It has a production capacity of 200 kg per hour. Driven by a powerful electric system, it can quickly handle large amounts of meat cutting. It features a two-in-one function for slicing and strip-cutting.

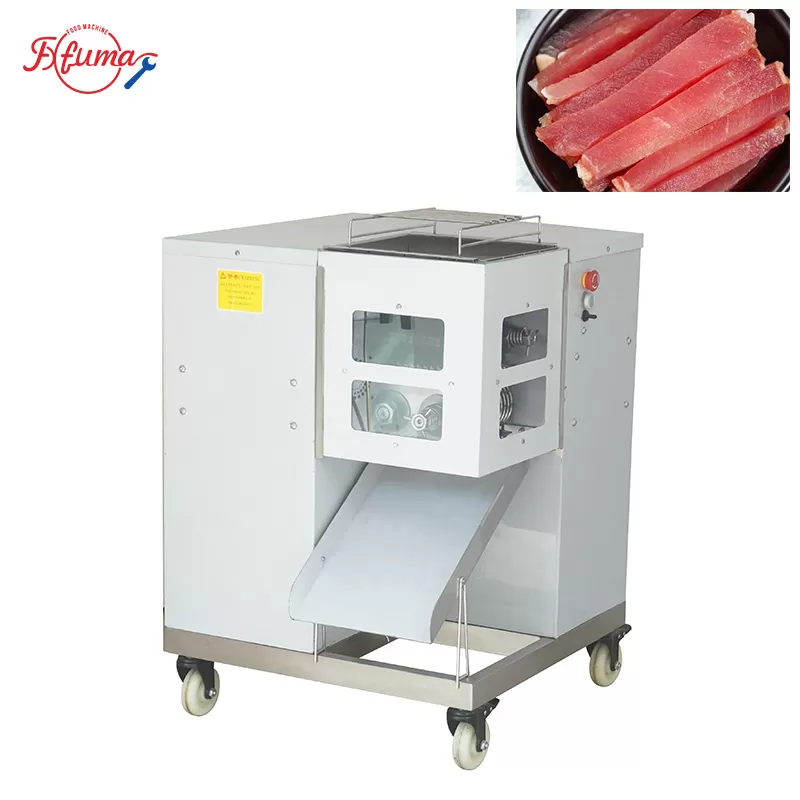

QW-10 Meat strips cutter machine Meat shredding machine
