Portioning

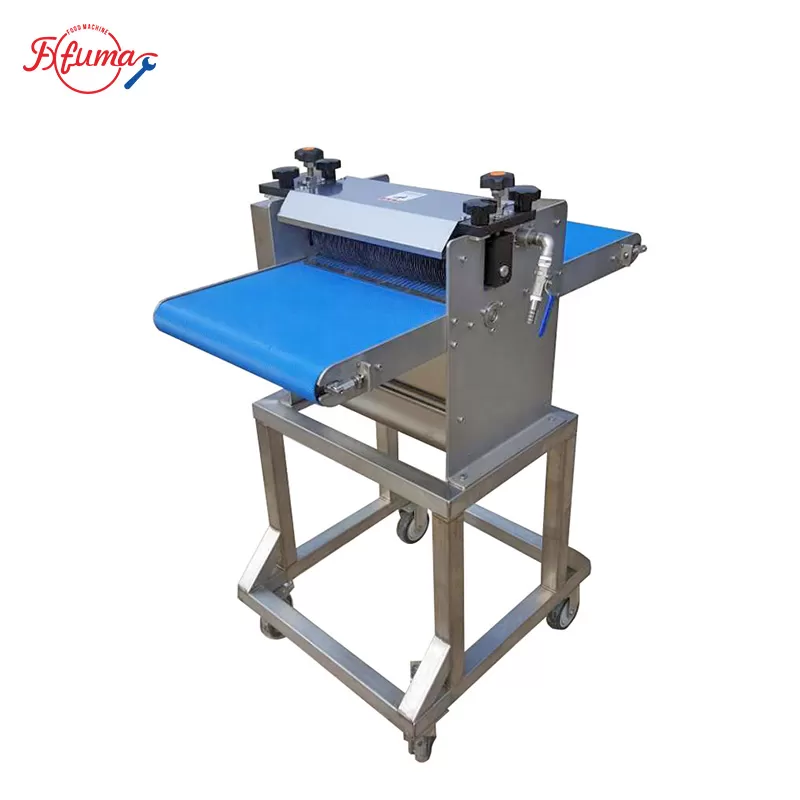

The squid flower-cutting machine uses an electric motor to drive the conveyor belt, transporting the squid to the cutting area. The positioning and material - pressing devices fix the squid. Under the action of the tool-driving motor and the transmission mechanism, the cutting tool rotates at a high speed or moves reciprocally to cut the squid, thus forming various shapes of flower-like cuts.
Specifications
| Model | FGB-150 |
| Voltage | 200W |
| Power | 3 Phases 380V 50Hz |
| Size | 850*520*1060mm |
| Flower cutting size | 5 mm/customization |
Description
Features of the sizeable squid-flower cutting machine:
● With adjustable cutting depth, high-speed cutting, and large output, this machine significantly boosts production efficiency and substantially reduces manpower requirements.

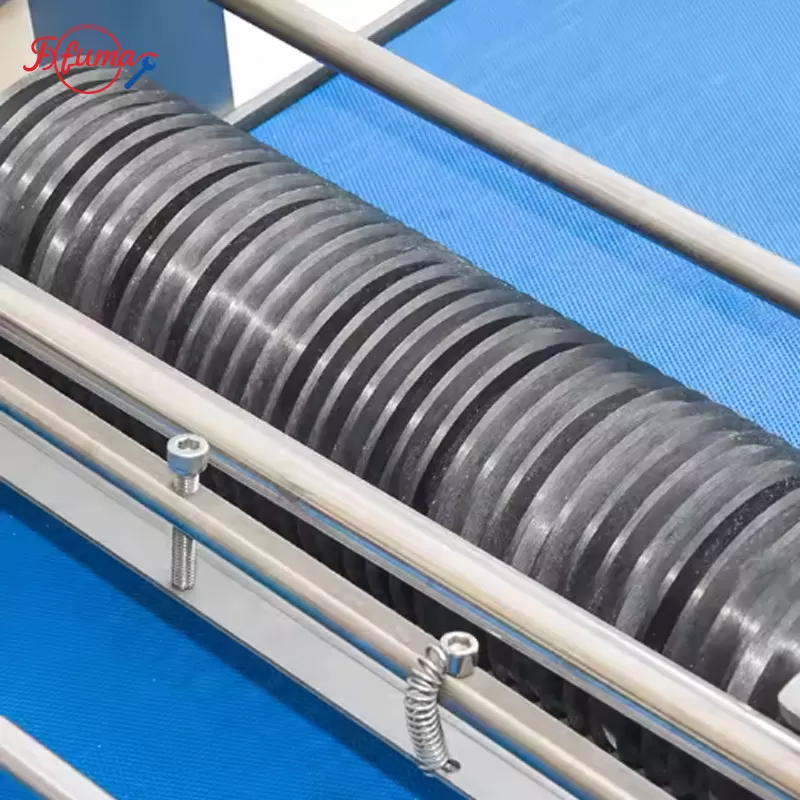

● The blade is a circular knife crafted from special materials, offering excellent cutting performance and being effortlessly disassembled for cleaning.
● This machine is user-friendly, with stable performance, and is safe and reliable. Both the conveying and cutting speeds are adjustable, and the belt and blade speeds can be steplessly regulated to meet diverse cutting needs.
● A floating and pressing design is employed during the cutting process, guaranteeing uniform strips throughout.
● The cutter, made of alloy material, boasts a long service life and remarkable durability. The entire machine is constructed from SUS304 stainless steel, providing waterproof and rust-proof capabilities.
● It can be customized as per requirements, making it suitable for use in the catering industry, including aquatic product processing plants, meat product factories, and large-scale catering operations.
Flower-cutting effect:

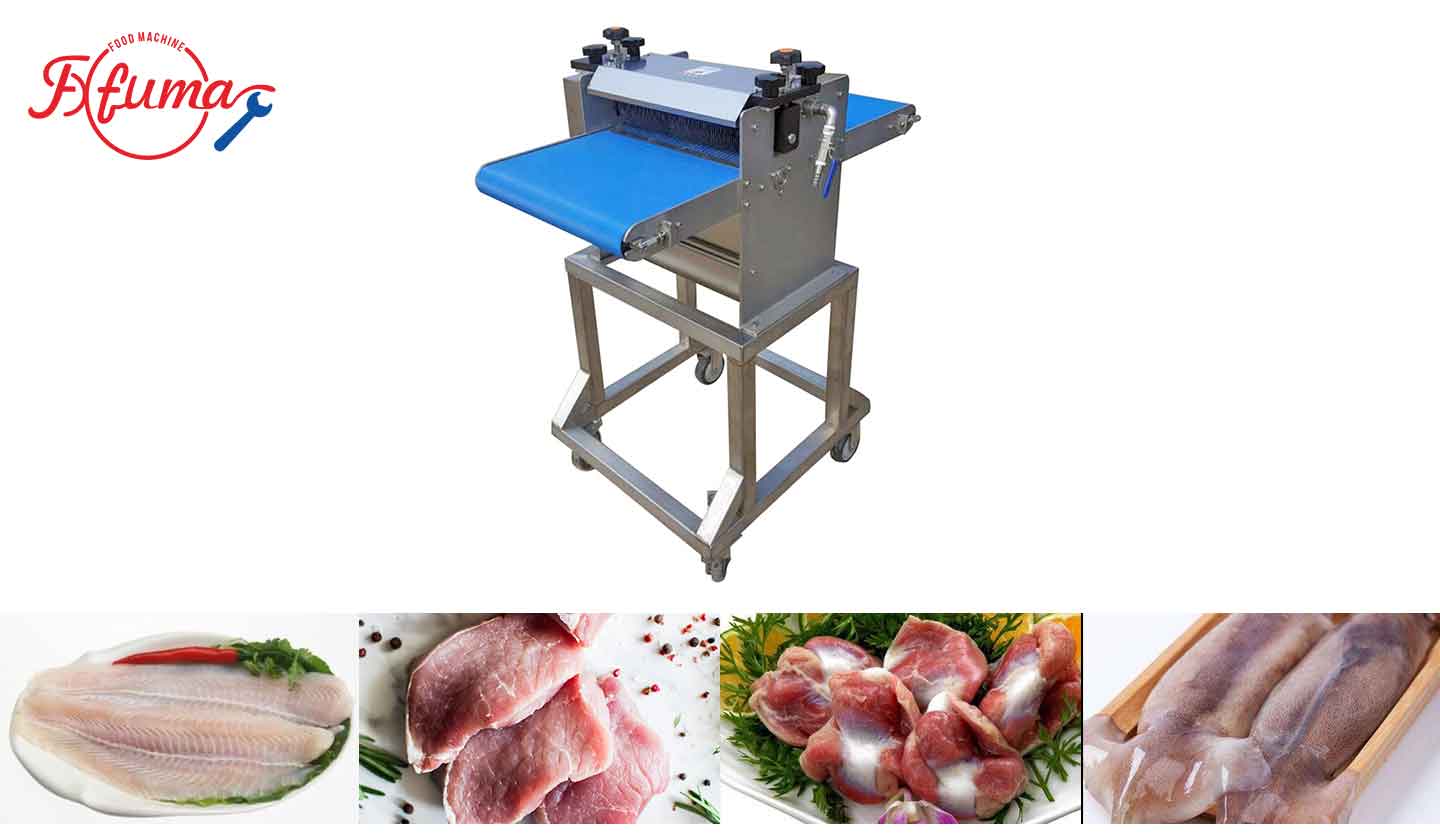

The squid flower-cutting machine has a wide range of applications. It can also be used for fish fillets, beef, pork, chicken gizzards, etc.
